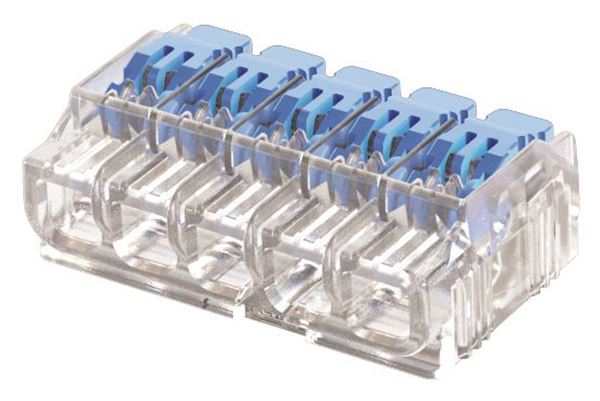

Take on complex wiring tasks with confidence using IDEAL INDUSTRIES Gen II 5-Port Lever Wire Connectors.
Designed for versatility and performance, these connectors handle solid, stranded, and flexible wires ranging from 0.2 mm² to 4.0 mm² (solid/stranded) and 0.14 mm² to 4.0 mm² (flexible), all with a robust 32A current rating.

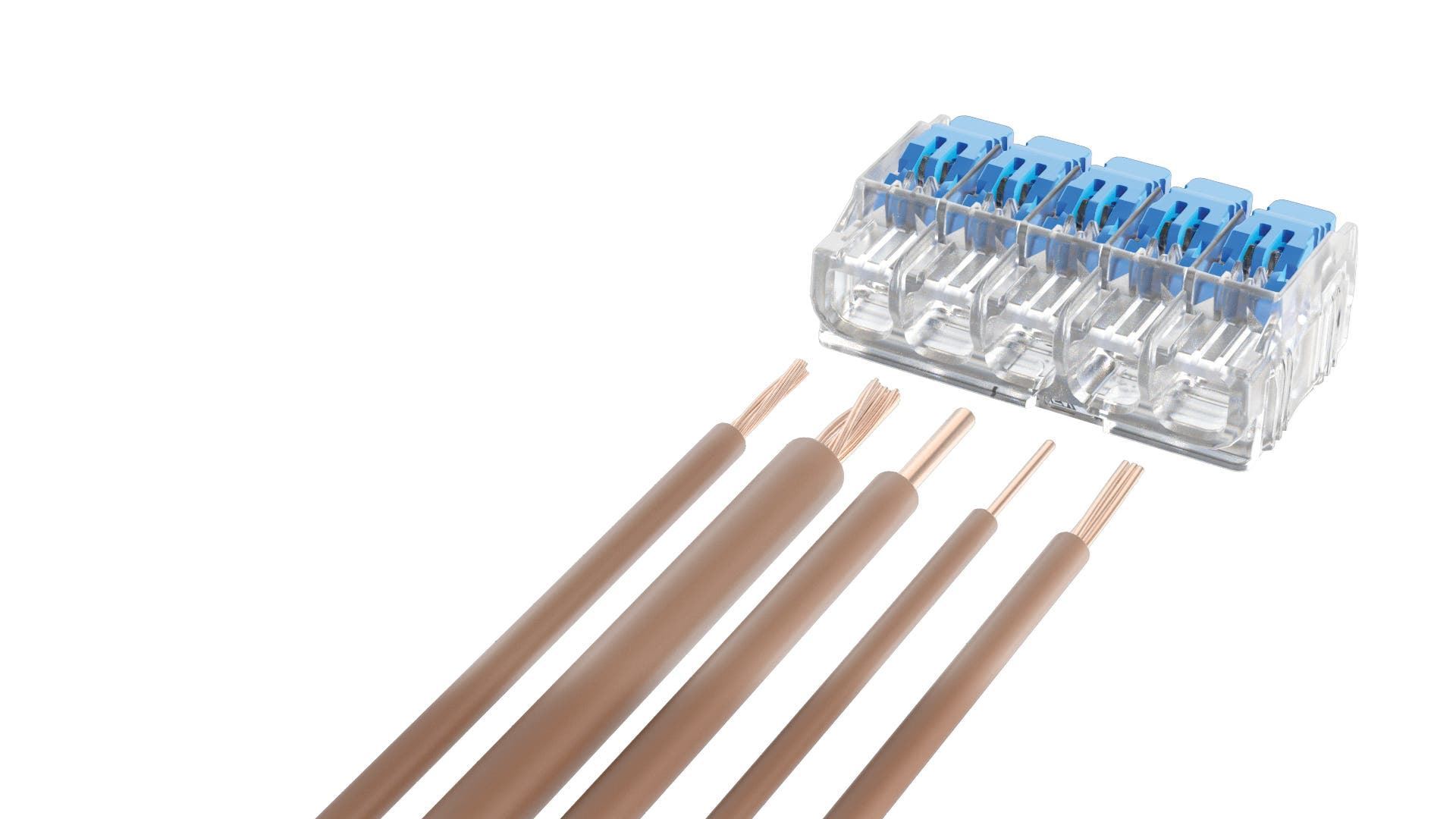

The intuitive lever design allows for fast, tool-free installation of up to five wires of mixed types and sizes—ideal for junction boxes, lighting circuits, and more. A smart alternative to traditional terminal strips, these connectors help electricians save time, reduce effort, and ensure consistent, secure terminations on every job.

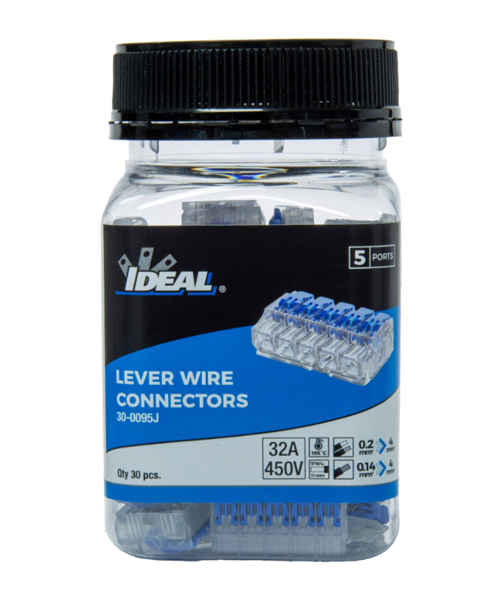

Packed in a convenient 30-piece jar, these 5-port connectors are a dependable solution for high-capacity wiring needs in residential, commercial, or industrial settings.
Details:
- For use in all applications up to 32A including lighting, access control, radial and final ring circuits
- Releasable connector – for solid, stranded and flexible wires
- Innovative levers – opens in the opposite direction of insertion points
- Compact design – suits tight spaces
- Easy to use – no need to lift the levers when using on solid wire
- Continuity check port – for testing
- Clear shell – allows for verification of connection
- Secure your cables in seconds – no screwdriver, no crimping, just strip, push, connect
Documentation:
Specifications:
- Wire clamping range: 0.2 mm2 to 4.0 mm2 (24 – 12 AWG for solid and rigid stranded wires (7 strands), 0.14 mm2 to 4.0 mm2 (24 – 12 AWG) for flexible wires
- Ratings: IEC 60998: 32A | 450V | 85° C (ambient), UL 486C: 20A | 600V | 105° C (working)
- Strip Length: 11-12mm | 0.45″
- Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
- CE, UKCA, UL and ENEC approved
