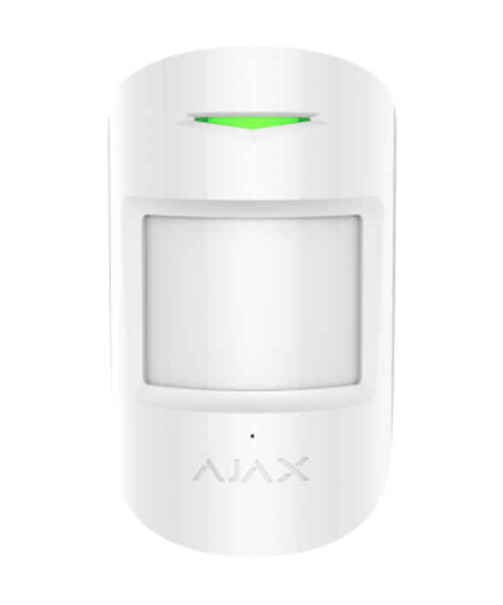

The AJAX CombiProtect combines the functions of two detectors — motion detector and glass break detector.
It detects motion in the room at a distance of up to 12 m and registers breaking glass at a distance of up to 9 m from the window. The motion detector ignores pets and helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass.
For use only with AJAX wireless alarms.
Details:
- Colour: White
- Dimensions 110mm × 65mm × 50mm
- Works up to 1,200 metres from Ajax Hub in open space or across several floors of a business centre
- Detects motion up to 12 metres away
- Detects breaking glass up to 9 metres away and 180 degrees from front of device
- Processes signals digitally
- Adjustable to three different sensitivity levels
- Uses Ajax SmartMotion algorithm to avoid false alarms from animals weighing less than 20kg
- Eliminates false alarms from gear and electromagnetic interference using a FresnelTech optical component, made from
- POLY IR4 material and an Excelitas PIR sensor
- Works under most conditions due to digital temperature compensation
- Uses two-factor detection of broken glass at low and high frequencies to prevent false alarms
- Two-way communication with Ajax Hub allows for periodic testing and customisation
Documentation:
Specifications:
- Detecting elements: PIR sensor (movement), electret microphone (glass break)
- Movement and glassbreak sensitivity: 3 levels adjustable (low, medium, high)
- Movement detection angle: 88.5° horizontal / 80° vertical
- Pet ignoring feature: weight up to 20 kg, height up to 500 mm
- Glassbreak detection distance: up to 9 metres
- Power supply: CR123A battery
- Power supply voltage: 3 V
- Battery life is up to 5 years
- Operating temperature range: from 0°С to +50°С
- Operating humidity: up to 80% Dimensions:
- Weight: 92 g
