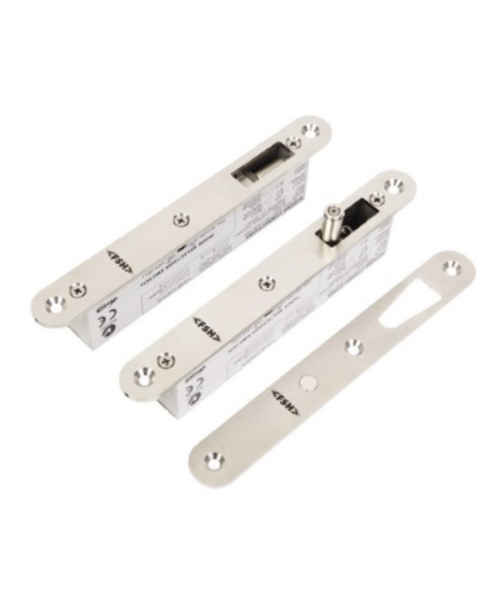

FSH VE1260R ECOLOCK Pre-Load Bolt Lock

The patented EcoLock VE1260 is a high-torque, motor-driven drop bolt designed for strength, efficiency, and flexibility.

With a pre-load/side load tolerance of up to 35kg, it can be installed vertically in the door frame or horizontally in the header, making it ideal for 180° swing-through doors thanks to its symmetric deadbolt mechanism.

Recognised as a “Green Product,” the VE1260 uses just 290mA @ 12VDC during locking/unlocking (Active Mode), and drops to under 15mA @ 12VDC in Sleep Mode when idle.

It also supports misaligned doors with optional strike plates that compensate for up to +12mm. A retrofit version is available for compatibility with PADDE/TRIMEC ES8000 installations. Optional red/green LED indicator unit also available.

Details:

• Holding strength: Up to 1000kg
• Multi voltage 12-30VDC
• Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load
• More side load: more current. See preload vs. current graph
• Sleep Mode: Afterlocking/unlocking the current drops down to -0.015A (15mA)

Documentation:

• Datasheet
