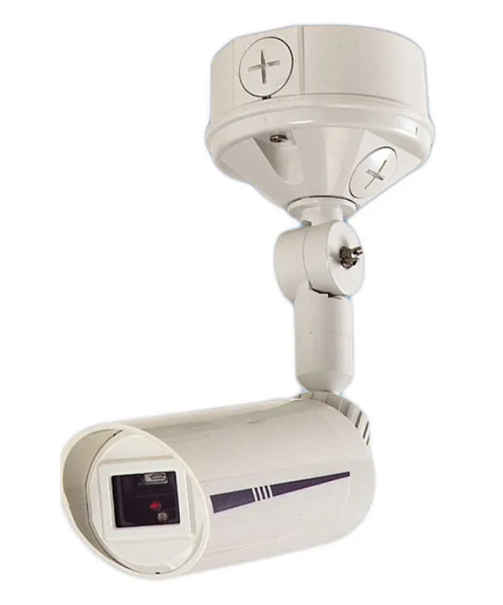

Takex FS-5000 Indoor and Outdoor Flame Detector

The TAKEX FS-5000 Ultraviolet Flame Sensor offers reliable outdoor flame detection with a range of up to 33 feet.

Weather-resistant and designed for harsh environments, it detects ultraviolet rays in flames and features relay outputs (N/O–N/C) for flexible integration with alarm system sounders or remote annunciation panels.

Operating on 10–30VDC, it delivers dependable performance for fire safety applications.

Specifications:

• Detection System – Ultra Violet Ray Detection
• Wavelength – 183 to 260nm
• Response Time – Switch Selectable: (0.2sec.) – (1sec.) – (6sec.) – (30sec.)
• Alarm Output – Dry Relay Contact, N/O – C – N/C, Reset: Approx. 2 secs.
• Contact Rating – 30VAC/DC 0.5A Max
• Alarm Led Red – On at Alarm
• Supply Power – 10 to 30VDC ( non polarity)
• Current Consumption – 35mA Max.
• Ambient Temperature – -4?F to + 122?F (-20?C to + 50?C)
• Installation – Outdoor – Indoor Ceiling or Wall Mount
• Wiring – Terminals on the Base
• Weight – 19.3oz. (550g)
• External Appearance
• Sensor: PC Resin (white)
• Adjustment: ABS Resin (white)
