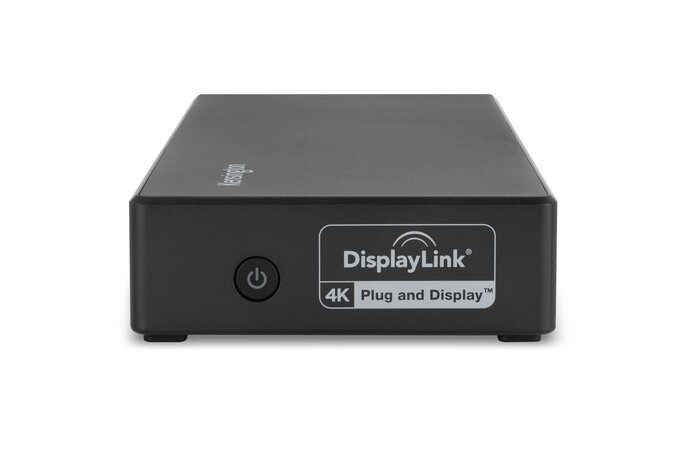

Kensington SD4781P USB-C and USB 3.0 Dual 4K Mobile Dock

The Kensington SD4781P is a versatile docking station designed for both productivity and convenience.

Featuring USB-C and USB 3.0 connectivity, it supports dual 4K displays through its two HDMI and two DisplayPort outputs, making it ideal for multitasking and high-resolution workflows.

With 100W power delivery, a VESA mount option, and compatibility with both Windows and Mac, it’s a reliable solution for creating an efficient, clutter-free workspace.

Details:

• Universal Compatibility: Supports USB-C® and legacy USB-A laptops running Windows 7 or above, macOS 10.14 or above and Chrome OS 44 or above.
• Sustainability focused: The plastic in this product contains 53% post-consumer recycled (PCR) content. *Does not include the cable, power supply or power cords.
• Secure Screw Lock Connection: Host USB-C cable includes a screw lock to ensure the cable remains in place even in busy office environments.

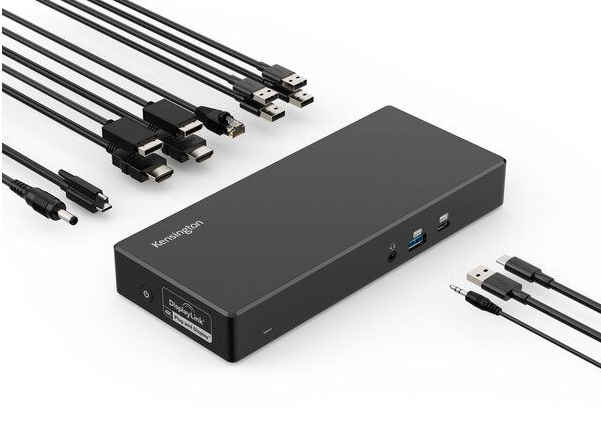

• Multiple Ports: Supports USB-C® and delivers speeds up to 10Gbps via 1 x USB-C® port and 5 x USB-A ports. Also includes 2 x HDMI® 2.0 ports, 2 x DP++ 1.2 ports, Gigabit Ethernet port and an audio combo jack.
• Dual 4K Video via HDMI® 2.0 and DP++ 1.2: Four video ports allow you to select between HDMI® 2.0 and DP++ 1.2 without the need for cumbersome adapters. Also enables dual screen supports for M1/M2/M3 MacBooks.
• Up to 100W Power Delivery: Delivers power to laptop, docking station and connected accessories. Supports up to 100W for USB-C® Alt Mode laptops. USB-A laptops require an alternative source of power, sold separately.
• Zero-Footprint Mounting Option and Security Cable Lock Slots: Maximise desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
• Industry-Leading Quality, Warranty and Support: Built with quality in mind, we stand behind the SD4781P USB-C® and USB-A Dual 4K Docking Station with a three-year limited warranty.

Documentation:

• Datasheet

Specifications:

• Video Connectors: 2 x HDMI 2 0 2 x DisplayPort ++ v1.2
• Maximum Resolution Supported: Single Monitor: 4096 x 2160 @ 60Hz Dual Monitors: 4096 x 2160 @ 60Hz
• Audio Connectors: 1 x 3.5mm audio combo jack
• Audio Channels Supported: Stereo LR
• Blue LED: Power indicato
• Exterior: Enclosure: PC ABS with texture. The plastic material utilised in this docking station is composed of 73% post-consumer recycled content (PCR).

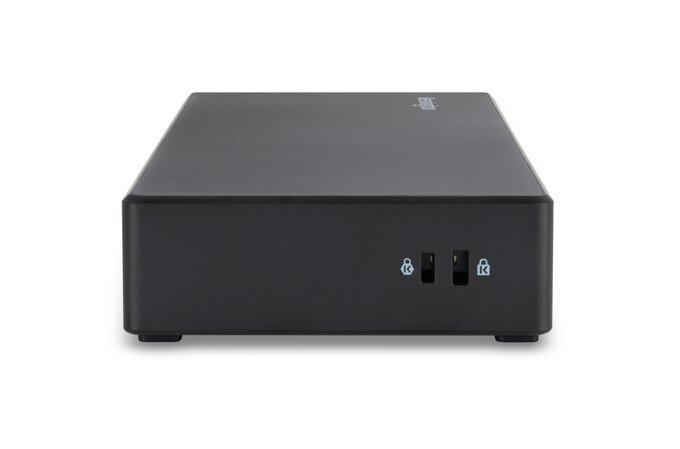

• Kensington Security Slot: Kensington Security Slot Kensington Nano Security Slot
• Unit Weight: 0.85lbs (0.385kg)
• Unit Dimensions without Peripherals: 8.26 x 3.54 x 1.18” (210 x 90 x 30.0 mm)
• Desktop Footprint: 29.29 in2 (189 cm2)
• Packaging Dimensions: 9.25 x 5.91 x 3.62” (235 x 150 x 90 mm)
• Packaging weight: 3.22 lbs (1.46 kg)
• Packaging Content: 1 x SD4781P USB-C & USB-A Dual 4K Docking Station 1 x USB-C 3.2 Gen2 Cable with USB-A Adapter and Screw Lock 1 x 170W Power Supply Unit 2 x Power Cords (AU, JP) 1 x Quick Installation Guide 1 x Compliance Sheet 1 x Warranty Card 1 x Welcome Card
• Warranty: 3-Year Limited – Worldwide
• Systems Supported: All laptops with DisplayLink software
• Operating Systems Supported: Windows® 7 or above macOS 10.14 or above Chrome OS 44 or above
• System Resource Requiremen: CPU: Intel® Core™ i5 6th generation or above Memory: 8Gb or above GPU: Intel® HD Graphics 620 or above
• Ports Front Panel : • 1 x USB-A 3.2 Gen2 10Gbps (5V/1.5A, supports BC 1.2*) *USB Battery Charging 1.2-compliant devices (up to 5V/ 2.4A for Apple Devices) • 1 x USB-C 3.2 Gen2 10Gbps (5V/3A , up to 9V/2A) Back Panel : • 4 x USB-A 3.2 Gen1 5Gbps (5V/0.9A)
