Evoko LISO Room Manager with 8″ Capacitive Multi-Touch LCD Screen

The Evoko Liso is a smart, user-friendly room booking device with an 8-inch capacitive multi-touch LCD screen featuring anti-fingerprint coating.

It connects via 1Gb LAN or 802.11n WiFi and supports RFID/NFC for easy access. It’s compatible with calendar services like Microsoft Office 365, Exchange (2010, 2013, 2016), and Google Workspace. Power is supplied through PoE (Power over Ethernet).

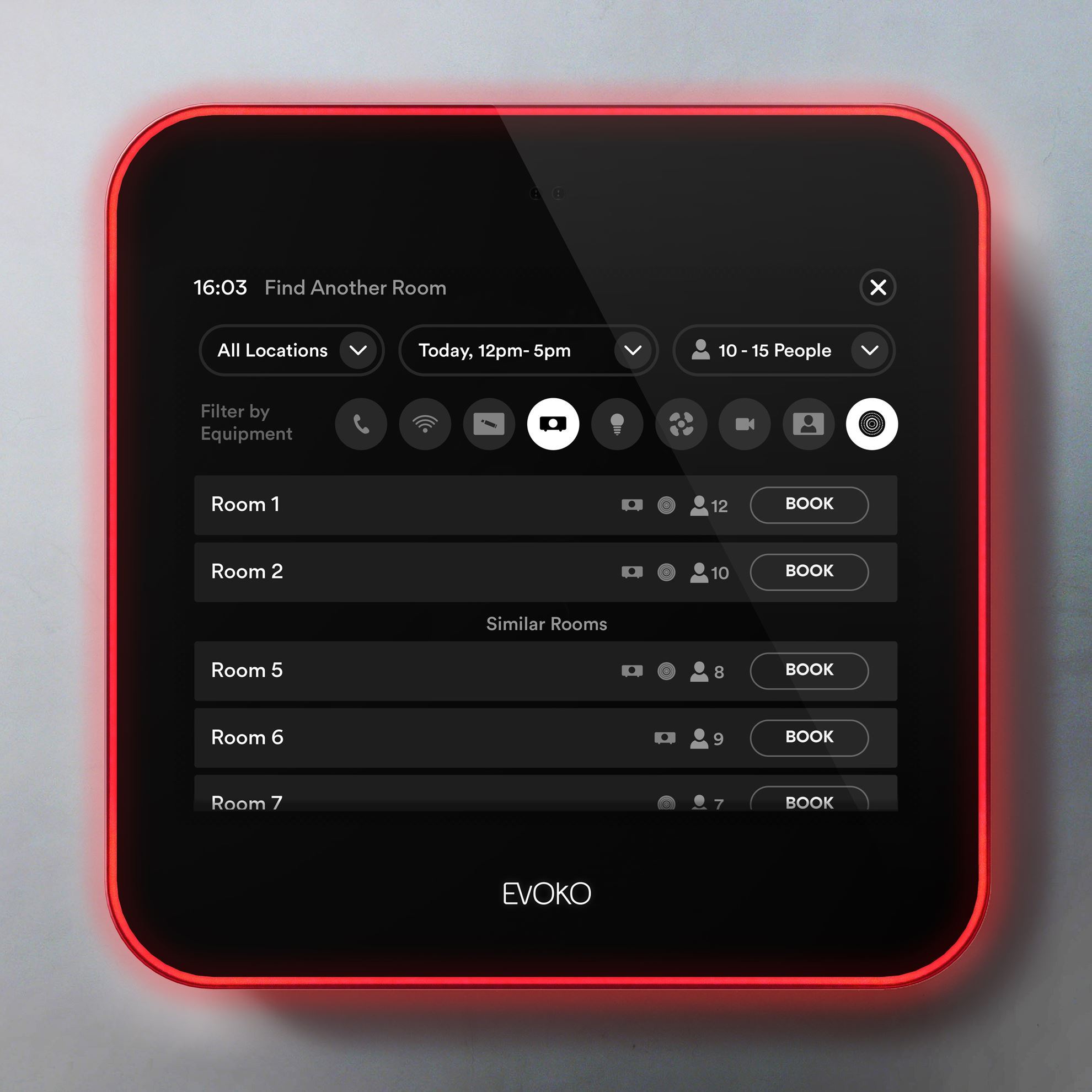

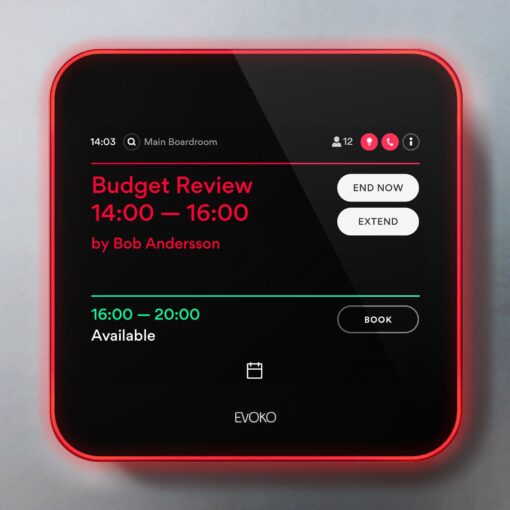

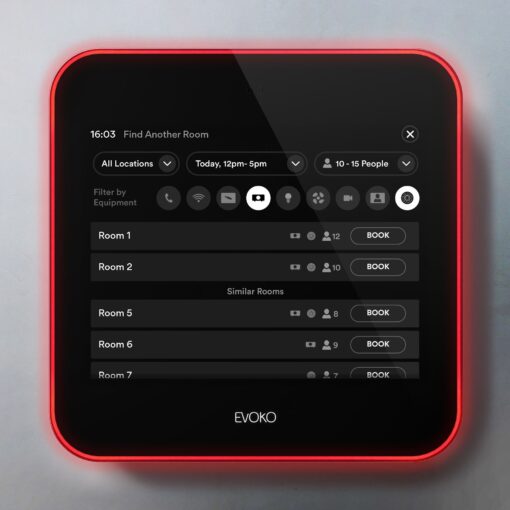

With Evoko Liso, you can book a meeting room using your digital calendar or directly on the screen. The display adapts when someone approaches, always showing the most relevant information. You can book, extend, or end a meeting right from the screen. It also allows you to search for available rooms based on size and equipment.

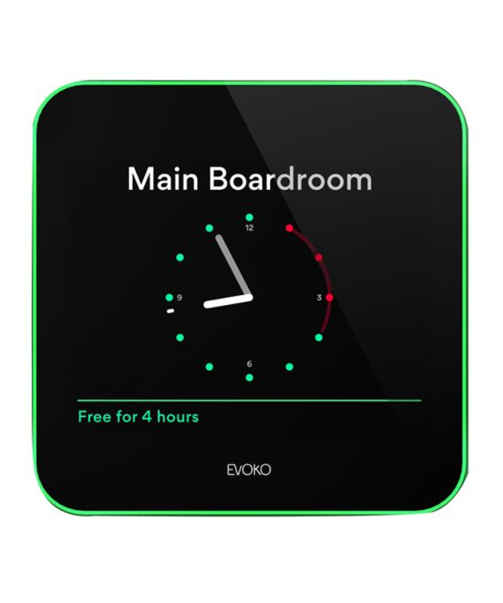

A coloured light system (green, amber, and red) clearly shows room availability at a glance, helping to avoid double bookings and confusion.

Smart and Insightful

Evoko Liso helps you make better use of your meeting spaces by providing insights into booking patterns through Evoko Home, a web-based management tool. It offers real-time monitoring, permission control, and multi-site management, all aimed at improving meeting room efficiency and reducing costs.

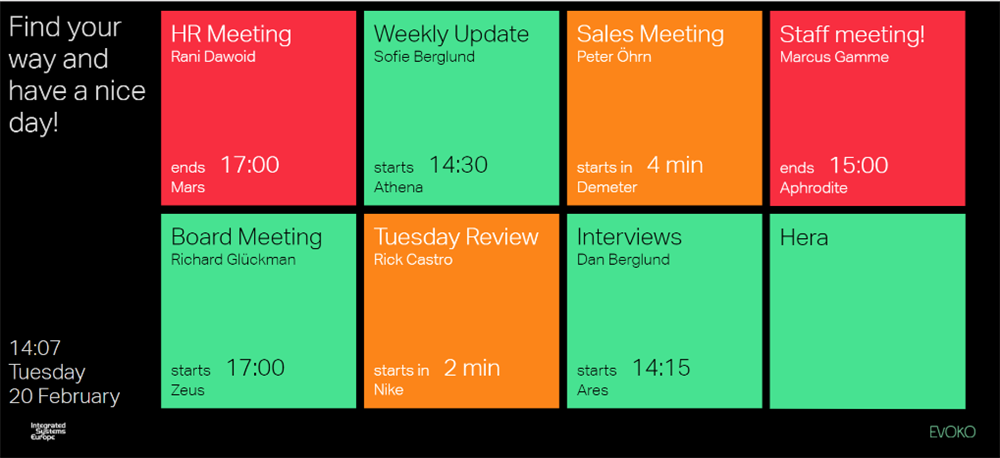

Overview Screen (Coming Soon)

The upcoming Overview Screen feature in Evoko Home will let you see the full meeting room schedule for an entire building or floor at a glance. Color coding makes it easy to spot which rooms are free, booked, or soon to be in use. Directional arrows help guide you to nearby available rooms quickly.

Specifications:

• Wi-Fi
• 802.11 a/b/g/n Ethernet
• RJ-45, 10/100/1000 Mbit
• PoE & PoE
• IEEE 802.3af RFID/NFC – coming soon 13.56 MHz reader compliant with ISO/IEC 18000-6:2013
• ISO/IEC 14443A, ISO/IEC 14443B
• PCD 106 kbit/s to 848 kbit/s
• ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
• Supports MIFARE 4K/1K reader encryption mechanism (does not support ISO 15693, MIFARE Ultralight C)
• Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open tag, SO/IEC 14443-4)

• Power over Ethernet (PoE), or
• 12V AC/DC power adapter (accessory)

• Proximity sensor
• Ambient light sensor

• Mounting options for both standard and glass walls
• 5-way cable exit option for easy and neat installation

• 3-way indirect light aura to make room status visible already from a distance
• Open API for third party integration
• Communication via real-time two-way connection
• Remote management with multi-site support
• Real-time monitoring & statistics

Documentation:

• Datasheet
